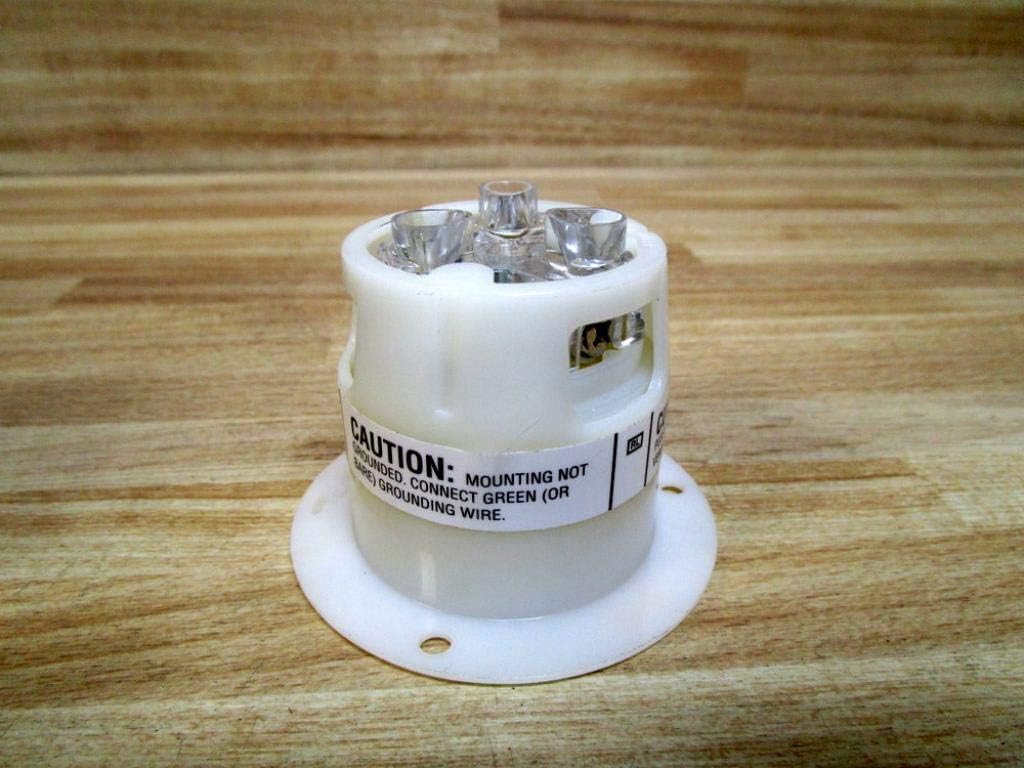

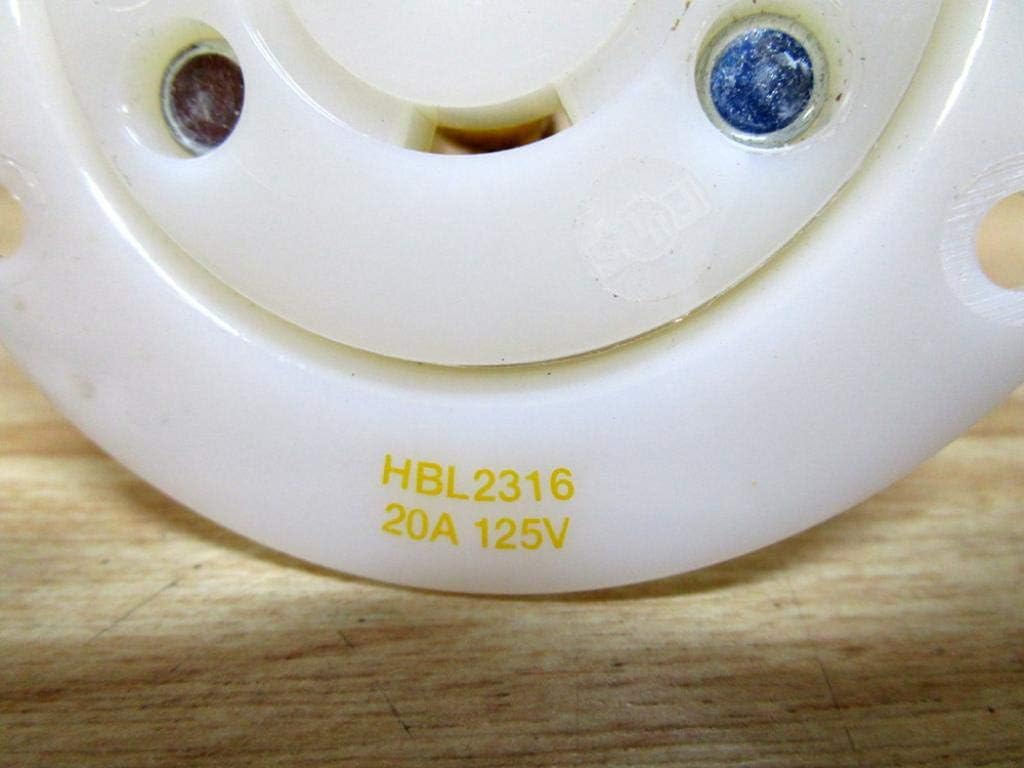

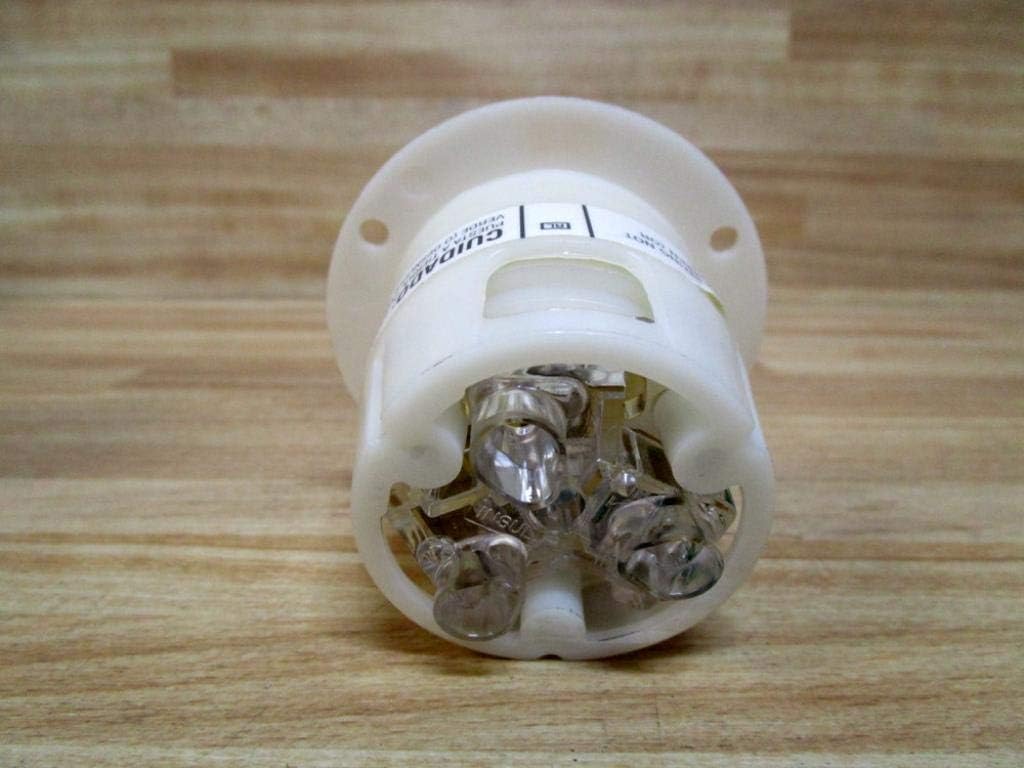

HUBBELL 2316 FLANGED 20 AMP 125V RECEPTACLE HBL2316 2 POLE 3 WIRE 20A 2P 3W
Product details
| Management number | 213668101 | Release Date | 2026/04/12 | List Price | US$36.00 | Model Number | 213668101 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The HUBBELL 20A Flanged Twist-Lock Receptacle is a flanged locking receptacle intended for use in industrial settings. It includes a twist-lock mechanism with a NEMA L5-20R configuration, supporting 2 poles and 3 wires at 125V AC and up to 20 amps. The unit is housed in materials and includes backwired terminations for straightforward installation.Key Features of the HUBBELL 20A Flanged Twist-Lock Receptacle: Amperage/Voltage: Rated for 20 A, 125V AC single-phase operationNEMA Configuration: L5-20R (twist-lock)Material Construction: elastomer housing; natural white nylon flangeMounting Type: Flush mount with included mounting screwsWire Accommodation: Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminalsTerminal Screws: Accepts slotted, Phillips, and Robertson head drivers (#10-32 terminal screws)Operating Temperature Range: -40°C to +75°C (without impact)Dielectric Strength & Performance: Withstands minimum of 2,000V; current interrupting at full rated currentFlammability Rating: UL94 HB for plugs/connectors; VO for receptacles/inletsCovers & Hardware Included: Comes with cover and mounting hardware
- Made in United States
| UPC | 783585037806 |
|---|---|
| Color | White |
| Model | HBL2316 |
| Voltage | 125 Volts |
| Wattage | 3 watts |
| Amperage | 20 Amps |
| Brand Name | Hubbell |
| Unit Count | 1.0 Count |
| Item Weight | 1 Pounds |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Material Type | Brass,Material,Steel,Zinc |
| Connector Type | Nema L5-20r |
| Power Plug Type | No Plug |
| Specification Met | NEMA, UL |
| Compatible Devices | All |
| Included Components | Mounting Screws |
| Total Power Outlets | 1 |
